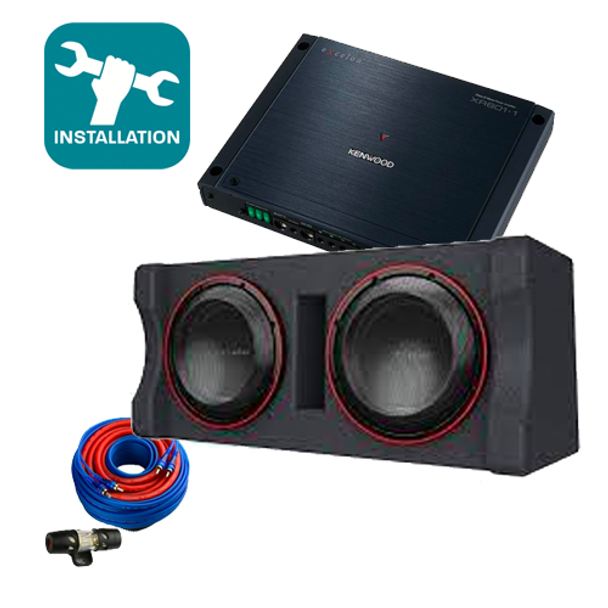

Kenwood Dual 12 Bundle with PXW1221DHP enclosure, 12" Excelon subwoofers

Kenwood Excelon PXW1221DHP

• ported enclosure with two 12" subwoofers
• polypropylene cone with "dual area" cap
• stress controlled spider
• 5/8" MDF construction with 3/4" MDF baffle
• down-firing design for greater output and more installation flexibility
• power handling: 1000 watts RMS (2000 watts peak)
• frequency response: 29-300 Hz
• total impedance: 2 ohms
• spring-post terminals accommodate up to 8-gauge wire
• steel-mesh grilles included
• dimensions: 35-3/4"W x 15-13/16"H x 15-13/16"D1 x 12-9/16"D2
• warranty: 2 years

Kenwood XR1001-1 Amplifier

• mono subwoofer amplifier
• 500 watts RMS x 1 at 4 ohms (1,000 watts RMS x 1 at 2 ohms)
• CTA-2006 compliant
• Class-D amp design — frequency response: 20-200 Hz
• variable low-pass filter (50-200 Hz, 12 or 24 dB/octave)
• variable subsonic (infrasonic) filter (15-40 Hz, 24 dB/octave)
• adjustable bass boost (0-18 dB at 40 Hz)
• wired remote volume control included
• warranty: 2 years

LP72R Amplifier Integration from OEM Head Unit

• Converts OEM Signal to Aftermarke RCA level Signal
• Adjustable Bass Knob Included

Amplifier Install Kit

• 4g Power and Ground Wire
• Fuse Holder
• Speaker Wire
• Terminals and connectors
• 17' RCA Cable
• Wire Ties

Basic Installation Included

• Standard Installation with above listed parts
• Some Vehicles MAY require additional labor
• Some Vehicles MAY require additional parts
• Call 402-393-2100 to get more details on your EXACT Vehicle YMM
