OEM Integration DSP with Automatic Time Correction and Digital EQ. 8-ch. Inputs / 4-ch. Stereo + 2 Subwoofer RCA Outputs

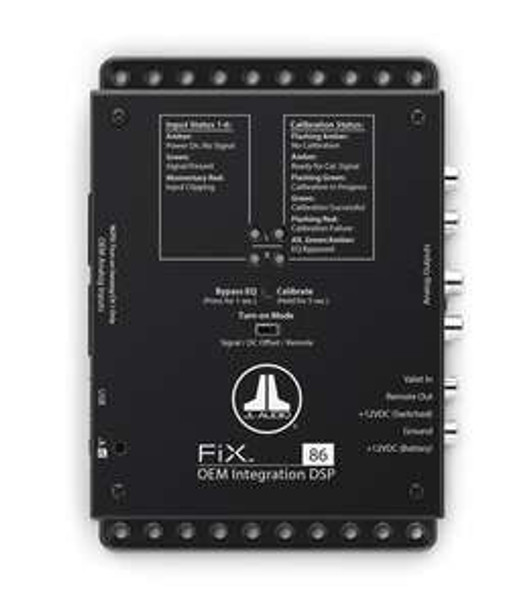

The FiX™ 86 is a state-of-the-art digital signal processor engineered to deliver outstanding sound from factory source units, while retaining OEM fader control. Unlike typical OEM interface products, the FiX™ 86 automatically corrects time-delayed factory outputs prior to signal summing and EQ correction. Calibration takes just a single button press and about 30 seconds to complete, with no special equipment needed.
With a powerful 24-bit DSP processor and quad 1/3 octave equalizers onboard, complex factory signals, up to 3-way front and 2-way rear, are combined and level matched automatically into six, full-range stereo signals: Front (fader-controlled), Rear (fader-controlled) and Subwoofer (non-fading, front+rear summed) outputs. Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage, line-level to highpower, amplified speaker-level outputs (up to 30V RMS).
Activation methods include 12-volt or Auto Turn-On (Signal/DC-Offset Sensing) to trigger a dedicated remote turn-on output for aftermarket equipment. An optional DRC-100 or DRC-200 Digital Remote Controller (sold separately) adds Master Volume Control, Subwoofer Level Control and preserves hands-free calling features, all from the driver’s seat.
Achieving great sound from your factory stereo has never been easier, or sounded better... Now with fader retention and subwoofer output!
|Power Supply Type||Regulated DC-DC SMPS|
|Input Operating Voltage||10 - 16 VDC|
|Standby Current Draw||<1.5 mA|
|Operating Current Draw||0.7 A|
|Recommended Fuse Value||1 A|
|Input Voltage Range||250 mV - 30 V RMS|
|Minimum Input Voltage||10 mV RMS|
|Input Level Setting||Fully automatic|
|Output Channels||Six (Front/Rear/Sub Output Pairs)|
|Analog Output||Unbalanced, stereo RCA jacks|
|Output Impedance||450 Ω|
|S/N Ratio||96 dB (A-Weighted, referred to 4V RMS Output)|
|THD+N @ Rated Output||0.02% (20 Hz - 20 kHz)|
|Audio Resolution||24 bit / 48 kHz|
|Number of EQ Bands||30 x 2 channels|
|EQ Resolution||1/3 octave (25 Hz - 20 kHz)|
|Remote Level Control||Optional (DRC-100 or DRC-200)|
|Remote Level Functions||Master Volume Control, Handsfree Optimization, LED Status Reporting (DRC-200 adds Subwoofer Level Control)|
